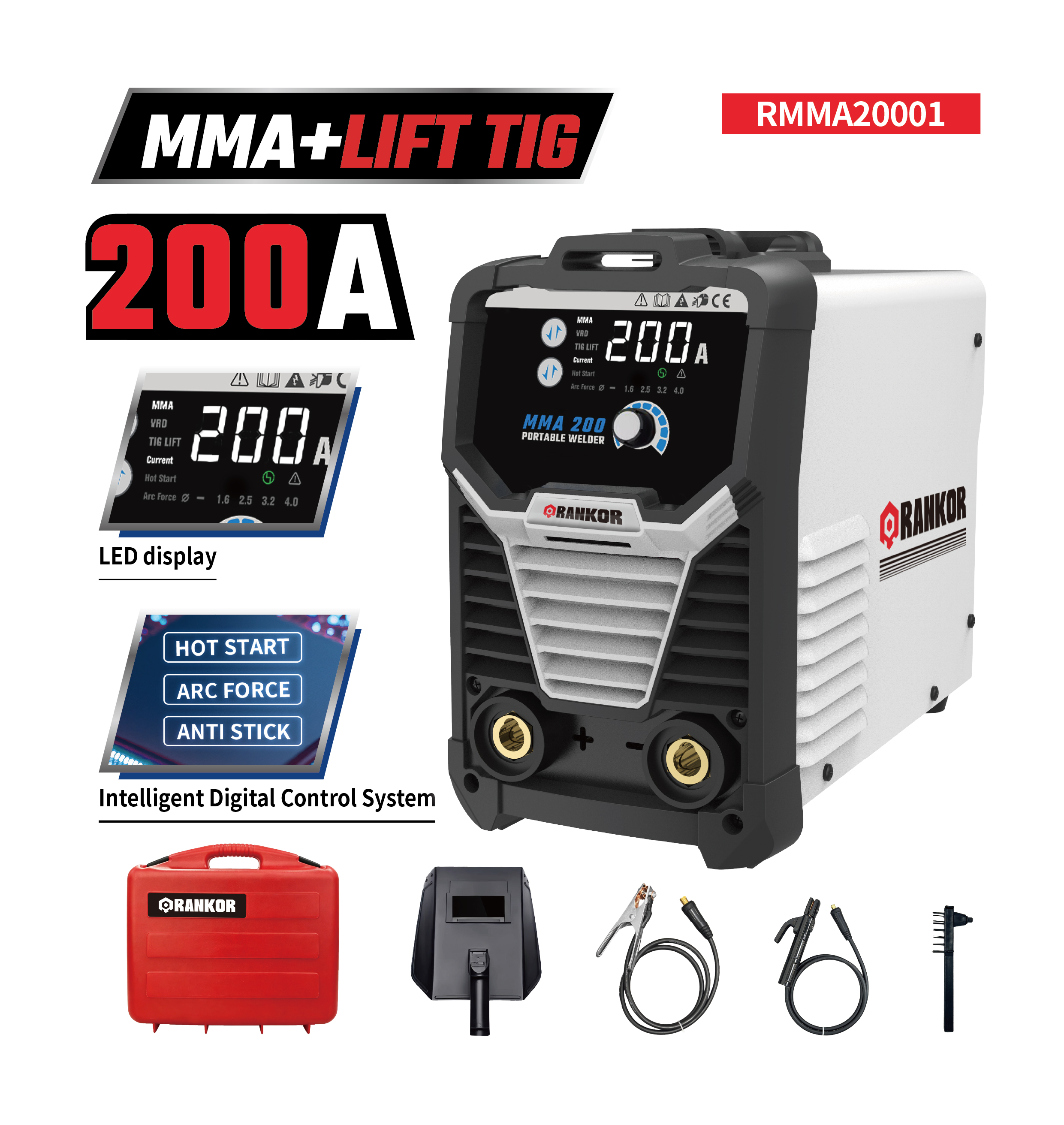

Portable MMA Welder
Portable MMA Welder
Portable MMA Welder

Portable MMA Welder

RMMA20001

200A

FEATURE

  • HD LED digital display Compact, lightweight and portable. MMA + Lift TIG dual function. Intelligent digital control with external hot start, arc force and anti-stick. VRD electric shock protection. Compatible with common, E6011, 7018 and J507 electrodes. Welds carbon steel, low alloy steel, stainless steel and cast iron. Hot start provides quick stable arc with less welding defects. Arc force enhances arc stability for smooth welding. Anti-stick prevents overheating and machine damage. Lift TIG avoids tungsten burn and tungsten inclusion.

INCLUDES

1. One set of welding handle pliers with wire: 200A copper-plated welding pliers with 2 m 20MM2 copper-clad aluminum wire DKJ35-50mm black male joint, 2. One set of grounding clip wire: 300A Dutch grounding clip with 2 m 20MM2 copper clad aluminum wire, 3. Simple face mask with plastic lens *1 4. Steel brush × 1 5. One instruction manual

SPECIFICATIONS

Rated Voltage/Frequency220V 50/60Hz
FunctionMMA/ANTI STICK/ HOT START/ARC FORCE/LIFT TIG /VRD
Rated Input Capacity9.02kVA
Max No-load Voltage70V
Current Range20-200A
Duty Cycle25℃ 30%
Efficiency0.85
Usable Electrode1.6-4.0mm (with 4.0 mm being optimal)
Insulation ClassH
Protection ClassIP21S
