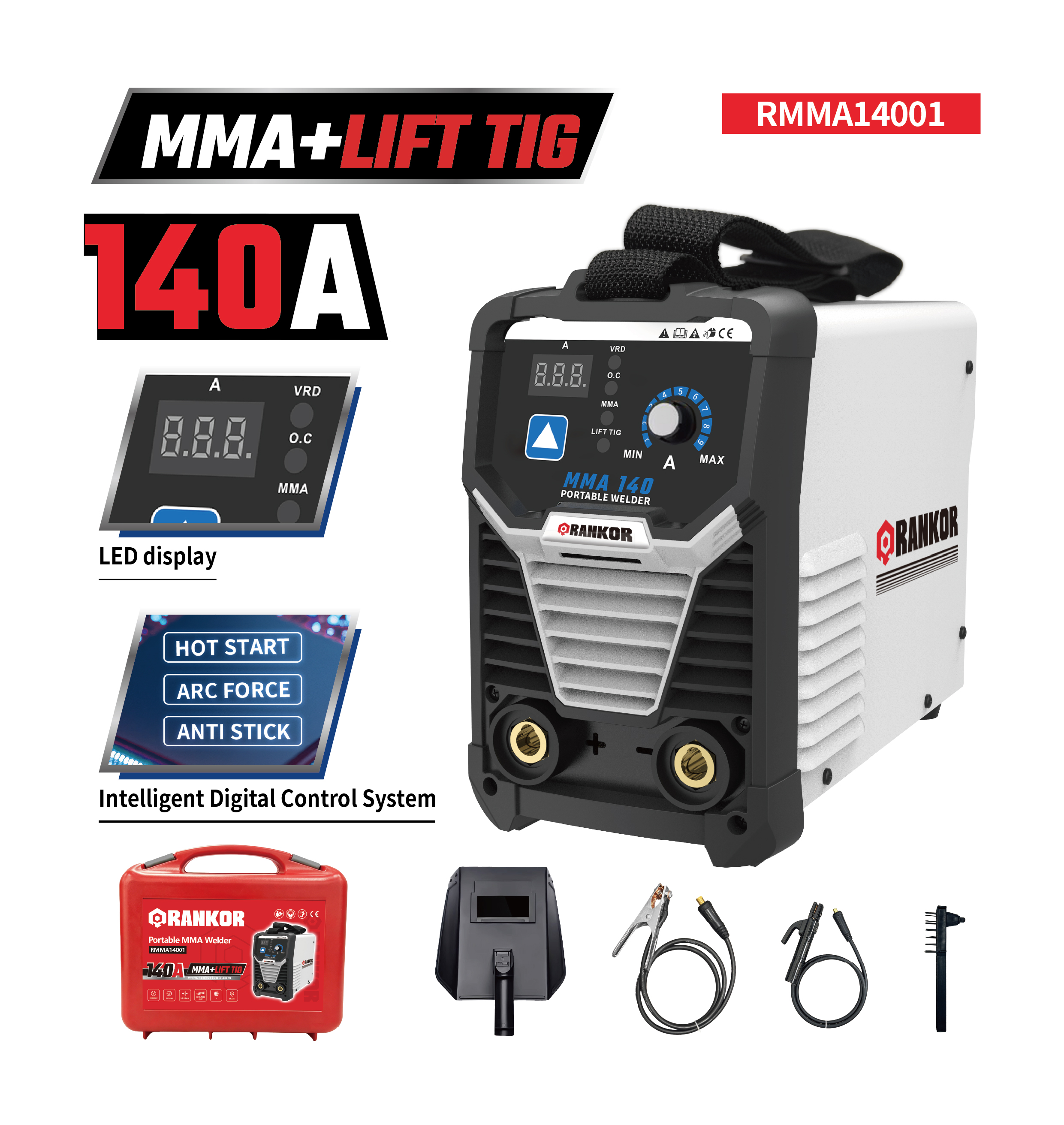

Portable MMA Welder
Portable MMA Welder
Portable MMA Welder

Portable MMA Welder

RMMA14001

140A

FEATURE

  • Compact, lightweight and portable. MMA + Lift TIG dual mode. Digital intelligent control with hot start, arc force and anti-stick. Built-in VRD electric shock protection. Fits E6011, 7018, J507 and regular electrodes. Welds carbon steel, alloy steel, stainless steel and cast iron. Lift TIG avoids tungsten burn & inclusion. VRD reduces electric shock risk.

INCLUDES

1. One set of welding handle pliers with wire: 200A copper-plated welding pliers are equipped with 1.5 m 14MM2 copper-clad aluminum wire DKJ10-25mm black male joint 2.1 set of grounding clip wire: 200A white-plated grounding clip with 1.5 m 14MM2 copper-clad aluminum wire DKJ10-25mm black male connector 3. Simple mask with plastic mirror * 1 4. Steel brush * 1 5. Instruction 1

SPECIFICATIONS

Rated Voltage/Frequency220V 50/60Hz
FunctionMMA,LIFT TIG
Rated Input Capacity5.78kVA
Max No-load Voltage70V
Current Range20-140A
Duty Cycle25℃ 30%
Efficiency0.85
Usable Electrode1.6-3.2mm (with 3.2 mm being optimal)
Insulation ClassH
Protection ClassIP21S
